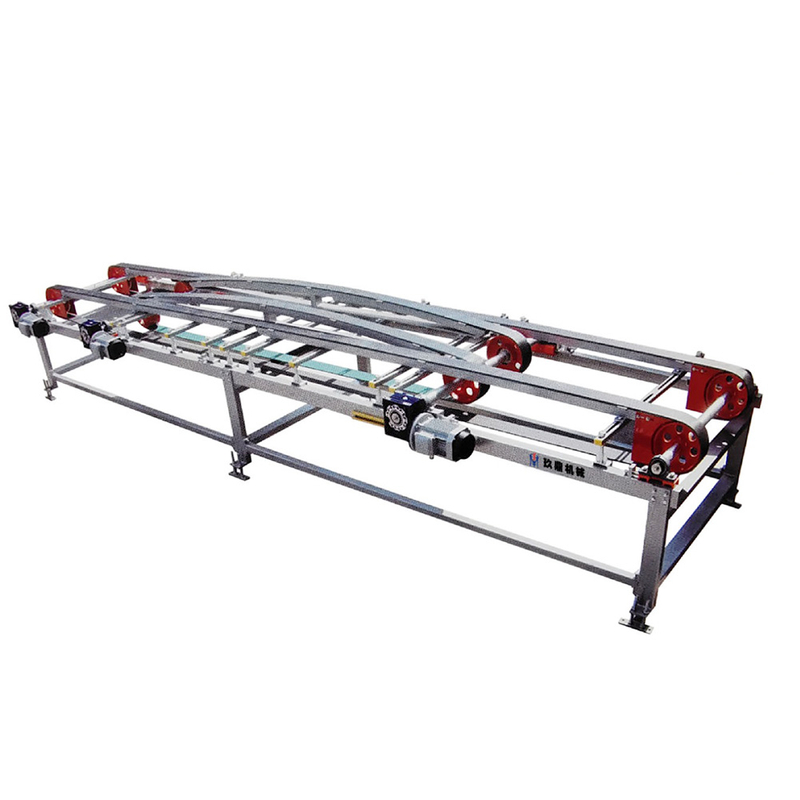

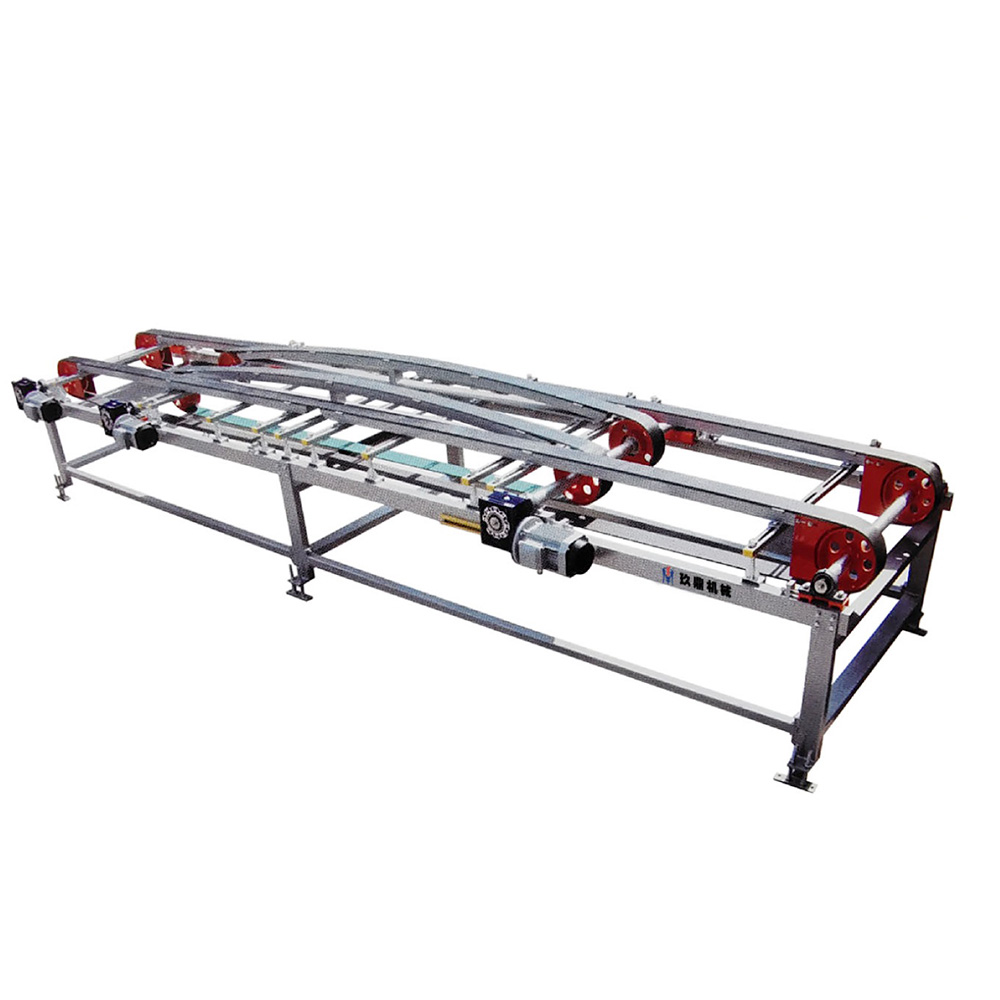

Arch Bridge Type Head Changer

Technical Specifications of Arch Bridge Tile Turner for Ceramic Production Line

1. Overview

The arch bridge tile turner is a premium directional transfer system designed for large-format tiles (1200×2400mm and above). Featuring a unique arched brick-passing structure, it achieves 180° non-contact tile rotation, especially suitable for high-value marble tiles and slab production lines.

2. Core Technologies

◆ Arch Vacuum Adsorption: 7-zone vacuum system (-0.6MPa) for stable slab rotation

◆  Dual Drive System: Servo motor + reducer with 0.5-2m/s adjustable speed

◆  Auto-clearance: Arch height automatically adapts to tile thickness (6-20mm)

◆  Self-diagnosis: Real-time monitoring of 32 parameters including vacuum level

3. Specifications

4. Key Advantages

◆ Zero-contact Protection: Full suspension rotation (Patent: CN2023XXXXXX)

◆ Energy Saving: 35% less power than conventional turners

5. Customization Options

◆ Dual-arch System: Up to 25pcs/min capacity

◆ Laser Positioning | Anti-vibration Base | Remote Maintenance

◆ Special Version: For 3cm ultra-thin slabs

Standard with Siemens S7-1200 PLC, OPC UA compatible for MES integration
