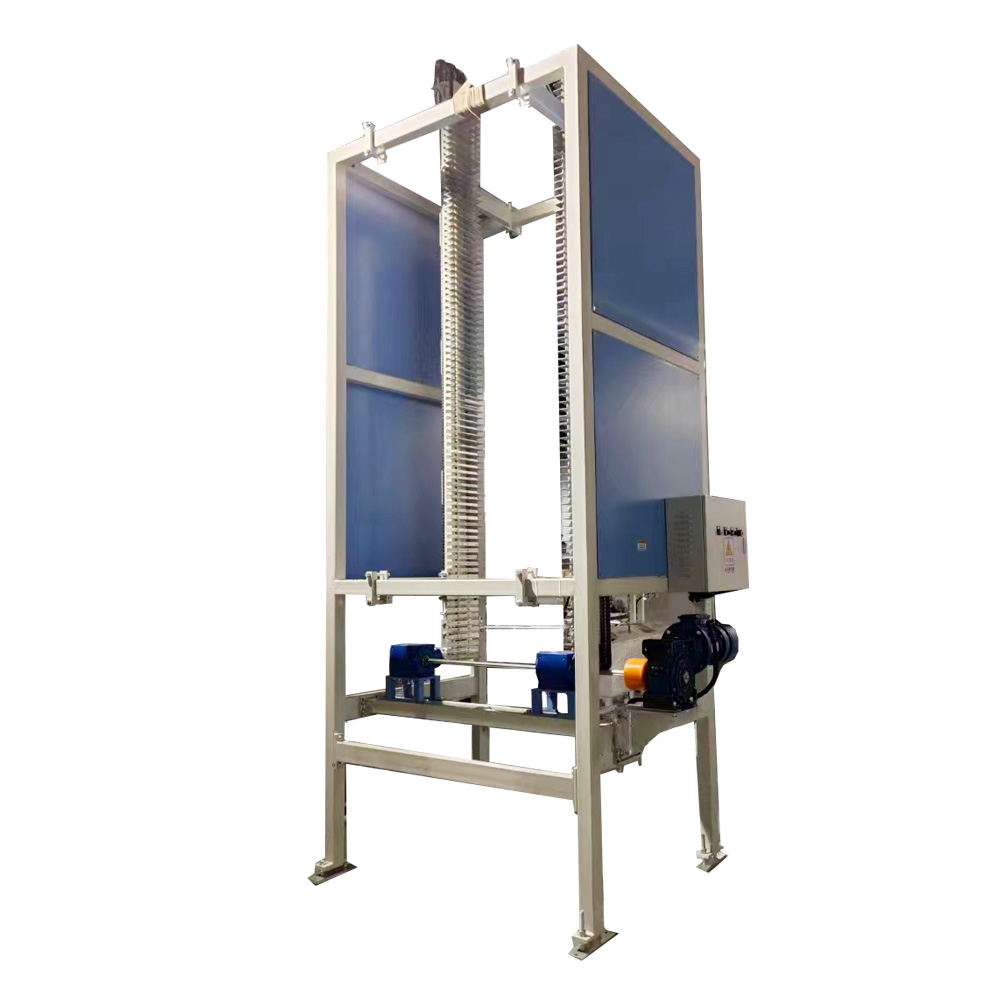

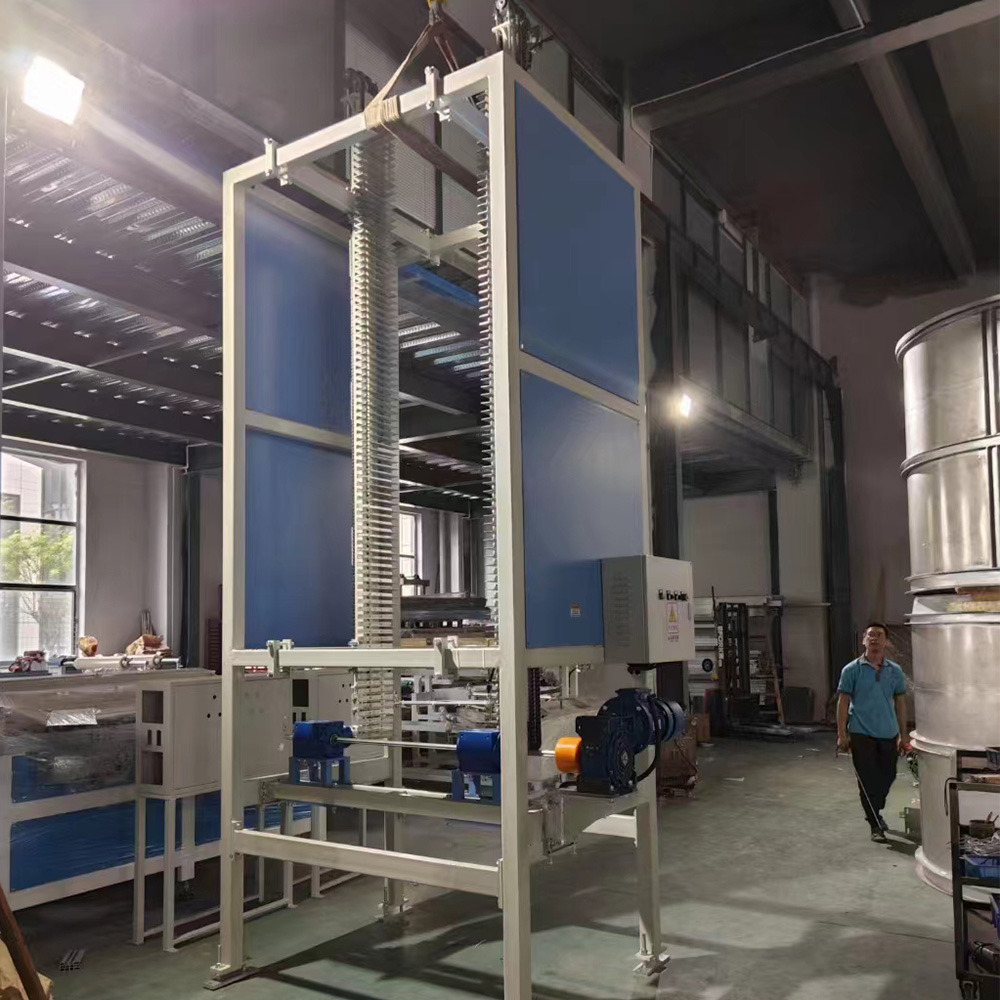

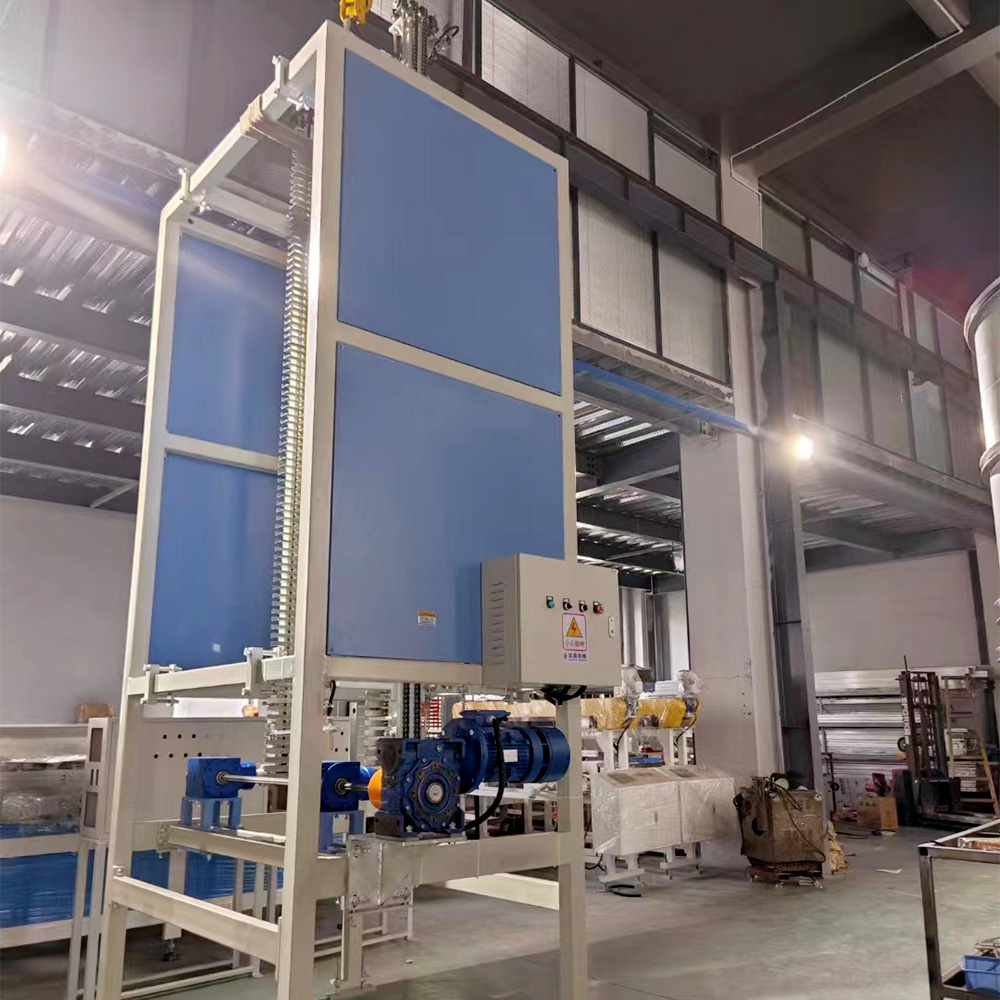

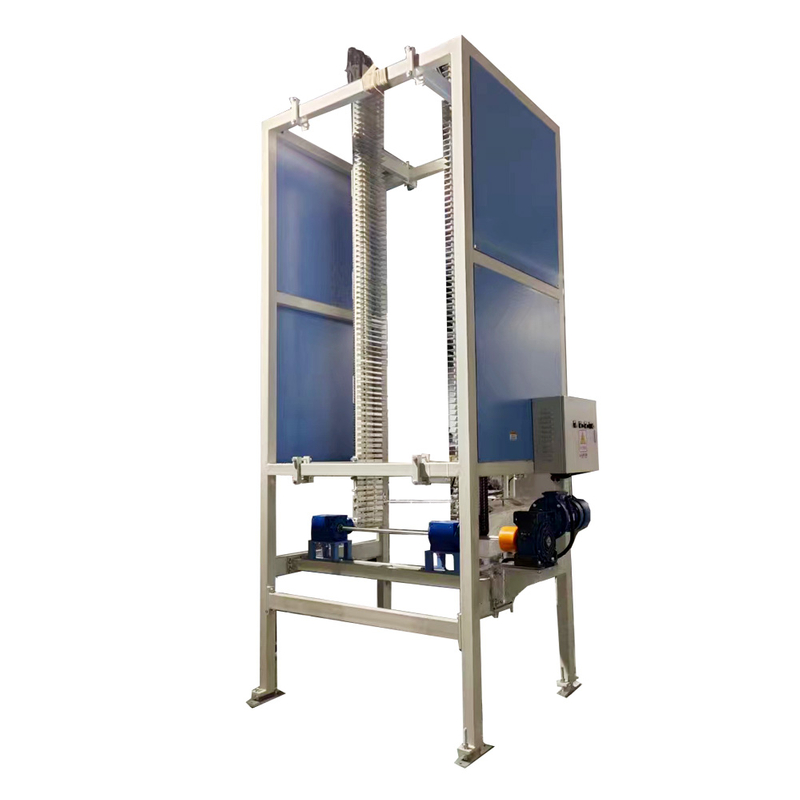

The pallet-type accumulator is a critical buffering equipment in tile production lines, designed to balance production rhythm differences between processes. Its modular pallet design allows flexible capacity adjustment, suitable for temporary storage and orderly release of various tile sizes (600×600mm to 1600×3200mm).
Adjustable independent pallets with expandable layers (standard 10-30 layers), each supporting up to 150kg.
PLC-controlled pallet movement synchronizes with upstream/downstream processes, with max. capacity of 200 tiles.
Polymer wear-resistant or ceramic-coated pallet surfaces prevent tile scratches.
Vertical stacking design saves 60% floor space compared to conventional conveyors.
Advantage | Description |
Flexible Configuration | Adjustable pallet spacing/speed fits polishing, packaging, and other processes. |
Non-contact Storage | Tiles are suspended to prevent bottom damage, improving yield by ≥2%. |
Easy Maintenance | Individual pallet replacement reduces downtime by 70%. |
Parameter | Value |
Tile Size | 600×600mm ~ 1600×3200mm |
Capacity | 10-30（50-200 tiles） |
Load per Pallet | Max. 150kg |
Lifting Speed | 0.3-1.5m/min（ VFD Adjustable） |
Positioning Accuracy | ±1mm |
Power Supply | 380V/50Hz, 5.5kW |
Glazing Line Buffer: Compensates for speed gaps between glazing and drying kiln.
Pre-packaging Storage: Ensures uninterrupted feeding for automatic packagers.
Photoelectric Detection: Monitors tile position to prevent stacking errors.
Automated Integration: Compatible with AGV/RGV transport systems.
·
